Hyperliquid & LayerZero Composer - Core Concepts

This document covers the essential concepts of Hyperliquid and the LayerZero Hyperliquid Composer. Understanding these is key before proceeding with the deployment.

1. Introduction to Hyperliquid​

Hyperliquid uses a custom consensus algorithm called HyperBFT.

Hyperliquid state execution is split into two broad components: HyperCore and the HyperEVM. HyperCore includes fully onchain perpetual futures and spot order books. Every order, cancel, trade, and liquidation happens transparently with one-block finality inherited from HyperBFT. HyperCore currently supports 200k orders / second

The HyperEVM brings the familiar general-purpose smart contract platform pioneered by Ethereum to the Hyperliquid blockchain. With the HyperEVM, the performant liquidity and financial primitives of HyperCore are available as permissionless building blocks for all users and builders.

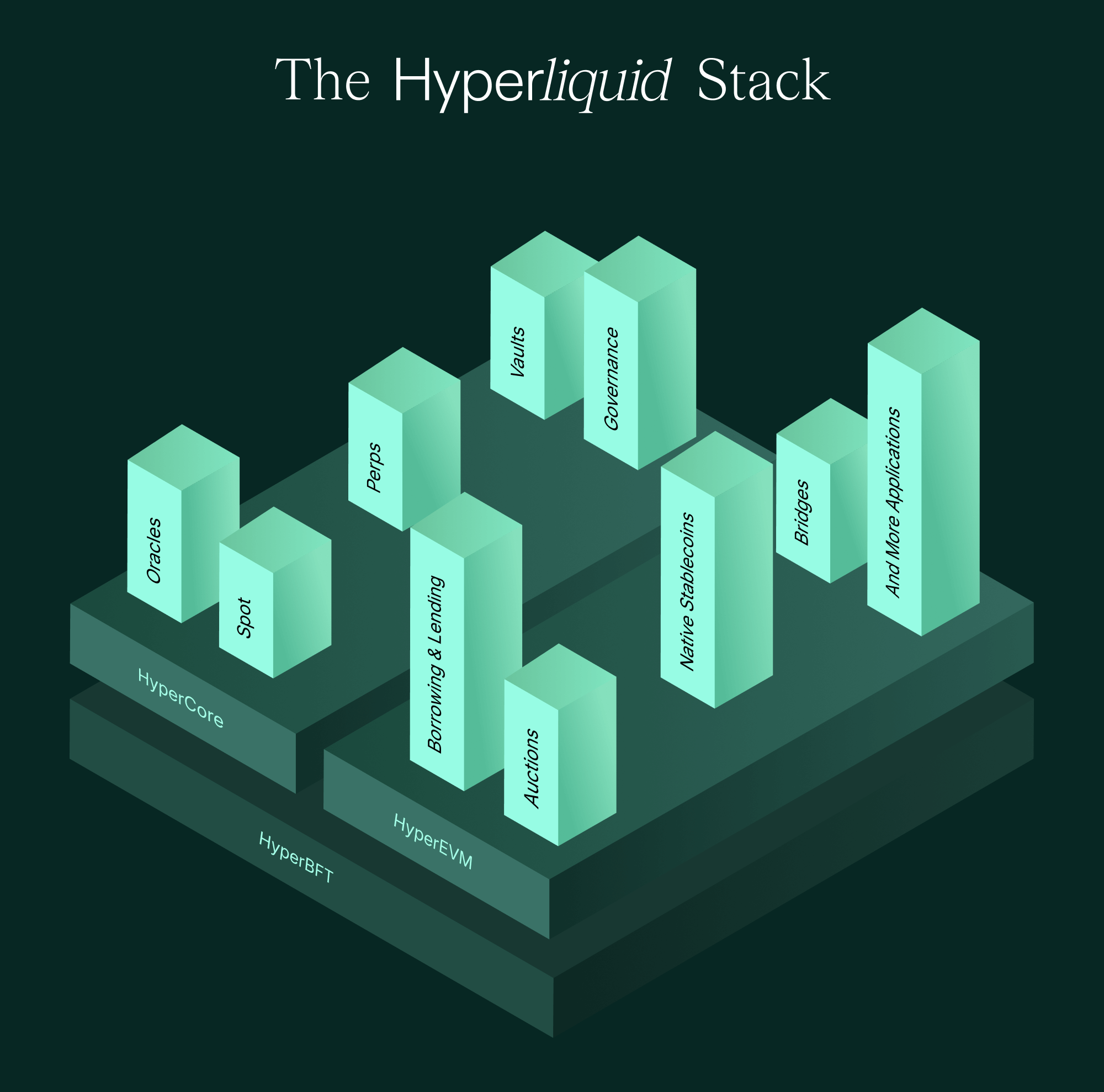

Hyperliquid Stack

HyperCore​

HyperCore, or Core, is a high-performance Layer 1 that manages the exchange’s on-chain order books with one-block finality.

Communication with HyperCore is done via L1 actions or actions, as opposed to the usual RPC calls which are used for EVM chains. Full list of L1 actions here: Exchange endpoint.

HyperEVM​

HyperEVM, or EVM, is an Ethereum Virtual Machine (EVM)-compatible environment that allows developers to build decentralized applications (dApps).

You can interact with HyperEVM via traditional eth_ RPC calls (full list here: HyperEVM JSON-RPC).

HyperEVM has precompiles that let you interact with HyperCore, where spot and perpetual trading happens (and is probably why you are interested in going to Hyperliquid). If you are not listing on HyperCore, then HyperEVM is your almost standard EVM network - you just need to switch block sizes.

Block Explorers:​

HyperEVM and HyperCore have their own block explorers. You can find (a list of explorers here).

2. Hyperliquid API​

Hyperliquid supports several API functions that users can use on HyperCore to query information, following is an example.

curl -X POST https://api.hyperliquid-testnet.xyz/info \
  -H "Content-Type: application/json" \
  -d '{"type": "spotMeta"}'

This will give you the spot meta data for HyperCore. A sample response is below.

{
  "universe": [
    {
      "name": "ALICE",
      "szDecimals": 0,
      "weiDecimals": 6,
      "index": 1231,
      "tokenId": "0x503e1e612424896ec6e7a02c7350c963",
      "isCanonical": false,
      "evmContract": null,
      "fullName": null,
      "deployerTradingFeeShare": "1.0"
    }
  ]
}
  • The tokenId is the address of the token on HyperCore.
  • The evmContract is the address of the ERC20 token on HyperEVM.
  • The deployerTradingFeeShare is the fee share for the deployer of the token.

3. HyperCore Actions​

An action as defined by Hyperliquid is a transaction that is sent to the HyperCore - as it updates state on the HyperCore it needs to be a signed transaction from the wallet of the action sender.

You need to use ethers-v6 to sign actions - https://docs.ethers.org/v6/api/providers/#Signer-signTypedData

# add ethers-v6 to your project as an alias for ethers@^6.13.5
pnpm add ethers-v6@npm:ethers@^6.13.5
import {Wallet} from 'ethers'; // ethers-v5 wallet
import {Wallet as ethersV6Wallet} from 'ethers-v6'; // ethers-v6 wallet

const signerv6 = new ethersV6Wallet(wallet.privateKey); // where wallet is an ethers.Wallet from ethers-v5
const signature = await signerv6.signTypedData(domain, types, message);

This is because in ethers-v5 EIP-712 signing is not stable: https://docs.ethers.org/v5/api/signer/#Signer-signTypedData

Experimental feature (this method name will change) This is still an experimental feature. If using it, please specify the exact version of ethers you are using (e.g. spcify "5.0.18", not "^5.0.18") as the method name will be renamed from _signTypedData to signTypedData once it has been used in the field a bit.

You can use the official Hyperliquid Python SDK to interact with HyperCore.

LayerZero also built an in-house minimal TypeScript SDK that focuses on switching blocks, deploying the HyperCore token, and connecting the HyperCore token to a HyperEVM ERC20 (OFT).

4. Accounts​

You can use the same account (private key) on both HyperEVM and HyperCore. HyperCore uses signed Ethereum transactions to validate data.

5. Multi-Block Architecture​

HyperEVM and HyperCore are separate entities, so they have separate blocks, interleaved by their creation order.

HyperEVM Blocks​

HyperEVM has two kinds of blocks:

  • Small Blocks: Default, 2-second block time, 2M gas limit. For high throughput transactions. OFT deployments are typically larger than 2M gas.
  • Big Blocks: 1 transaction per block, 1 block per minute, 30M gas limit. For deploying large contracts.

You can toggle between block types for your account using an L1 action of type evmUserModify:

{"type": "evmUserModify", "usingBigBlocks": true}

You can also switch to big blocks using LayerZero Hyperliquid SDK with a simple command:

npx @layerzerolabs/hyperliquid-composer set-block --size big --network mainnet --private-key $PRIVATE_KEY
note

Flagging a user for big blocks means all subsequent HyperEVM transactions from that user will be big block transactions until toggled off. To toggle back to small blocks, set usingBigBlocks to false.

Alternatively, use bigBlockGasPrice instead of gasPrice in transactions.

HyperCore Blocks​

HyperCore has its own blocks, which means there are 3 block types in total.

As HyperCore and HyperEVM blocks are produced at different speeds, with HyperCore creating more than HyperEVM, the blocks are created in not a strictly alternating manner.

For example, the block sequence might look like this:

[Core] → [Core] → [EVM-small] → [Core] → [Core] → [EVM-small] → [Core] → [EVM-large] → [Core] → [EVM-small]

6. Precompiles​

Hyperliquid uses precompiles in two ways: System Contracts and L1ActionPrecompiles.

System Contracts:

  • 0x2222222222222222222222222222222222222222: System contract address for the HYPE token.
  • 0x200000000000000000000000000000000000abcd: System contract address for a created Core Spot token (asset bridge).

L1ActionPrecompiles:

  • 0x0000000000000000000000000000000000000000: One of many L1Read precompiles.
  • 0x3333333333333333333333333333333333333333: The L1WritePrecompile for sending transactions to HyperCore.
  • L1Read reads from the last produced HyperCore block at EVM transaction execution.
  • L1Write writes to the first produced HyperCore block after the production of the EVM block.
note

L1Write is currently available on testnet only.

7. Token Standards​

  • Token standard on HyperEVM: ERC20 (EVM Spot)
  • Token standard on HyperCore: HIP-1 (Core Spot)

Deploying a Core Spot token involves a 31-hour Dutch auction for a core spot index, followed by configuration.

Critical Note on Hyperliquidity

Using the Hyperliquid UI for spot deployment (https://app.hyperliquid.xyz/deploySpot) forces the use of "Hyperliquidity". This is NOT supported by LayerZero as it can lead to an uncollateralized asset bridge. Deploy via API/SDK to avoid this. The LayerZero SDK facilitates this.

8. The Asset Bridge: Linking EVM Spot (ERC20) and Core Spot (HIP-1)​

For tokens to be transferable between HyperEVM and HyperCore, the EVM Spot (ERC20) and Core Spot (HIP-1) must be linked. This creates an asset bridge precompile at an address like 0x2000...abcd (where abcd is the coreIndexId of the HIP-1 in hexadecimal).

Linking Process:

  1. requestEvmContract: Initiated by the HyperCore deployer, signaling intent to link HIP-1 to an ERC20.
  2. finalizeEvmContract: Initiated by the HyperEVM deployer (EOA) to confirm the link.

Asset Bridge Mechanics: The asset bridge (0x2000...abcd) acts like a lockbox.

  • To send tokens from HyperEVM to HyperCore: Transfer ERC20 tokens to its asset bridge address on HyperEVM.
  • To send tokens from HyperCore to HyperEVM: Use the spotSend L1 action, targeting the asset bridge address on HyperCore.

Funding: For tokens to move into HyperCore, the deployer must mint the maximum supply (e.g., u64.max via API) of HIP-1 tokens to the token's asset bridge address on HyperCore (or to their deployer account and then transfer).

info

u64.max is the maximum value for a u64 integer, which is 2^64 - 1. It's a 20-digit number: 18,446,744,073,709,551,615 (18.4 quintillion, or 18 + 18 zeros)

Example of transition in bridge balances:

  1. Initial state: [AssetBridgeEVM: 0 | AssetBridgeCore: 0]
  2. Fund HyperCore bridge: [AssetBridgeEVM: 0 | AssetBridgeCore: X]
  3. User bridges X*scale tokens from EVM to Core: User sends X*scale ERC20 to EVM bridge.
  4. New state: [AssetBridgeEVM: X*scale | AssetBridgeCore: 0]
Critical Warning on Bridge Capacity

Hyperliquid has no checks for asset bridge capacity. If you try to bridge more tokens than available on the destination side of the bridge, all tokens will be locked in the asset bridge address forever. The Hyperliquid Composer contract includes checks to refund users on HyperEVM if such a scenario is detected.

Partial Funding Issue

"Partially funding" the HyperCore asset bridge is problematic. If initial funds are consumed ([X.EVM | 0]) and you add more Y.Core tokens to the HyperCore bridge, it might trigger a withdrawal of X.EVM tokens, leading to [0 | Y.Core] but with X.Core tokens (previously converted from X.EVM) still in circulation on HyperCore that cannot be withdrawn back to EVM.

Always fully fund the HyperCore side of the asset bridge with the total intended circulatable supply via the bridge.

9. Communication between HyperEVM and HyperCore​

  • HyperEVM reads state from HyperCore: Via precompiles (e.g., perp positions).
  • HyperEVM writes to HyperCore: Via events at specific precompile addresses AND by transferring tokens through the asset bridge.

10. Transfers between HyperEVM and HyperCore​

Spot assets can be sent from HyperEVM to HyperCore and vice versa. They are called Core Spot and EVM Spot. These are done by sending an ERC20::transfer with asset bridge address as the recipient.

To move tokens across:

  1. Send tokens to the asset bridge address (0x2000...abcd) on the source network (HyperEVM or HyperCore).
    • On HyperEVM, this is an ERC20::transfer(assetBridgeAddress, value)
    • The event emitted is Transfer(address from, address to, uint256 value) → Transfer(_from, assetBridgeAddress, value);
    • The Transfer event is picked up by Hyperliquid's backend.
  2. The tokens are credited to your account on the destination network.
  3. Then, on the destination network, send tokens from your address to the final receiver's address.

The HyperliquidComposer contract from LayerZero Hyperliquid SDK automates these actions.

11. Hyperliquid Composer​

The Composer facilitates X-network → HyperCore OFT transfers.

Why a Composer?

Users might want to hold tokens on HyperEVM and only move to HyperCore for trading. Auto-conversion in lzReceive isn't ideal. An lzCompose function allows this flexibility.

Mechanism:

  1. A LayerZero message sends tokens to Hyperliquid. lzReceive on the OFT on HyperEVM mints tokens to the HyperLiquidComposer contract address.
  2. The composeMsg in SendParam (from the source chain call) contains the actual receiver's address on Hyperliquid.
  3. The HyperLiquidComposer's lzCompose function is triggered.
  4. The Composer:
    • Transfers the received EVM Spot tokens (ERC20) from itself to the token's asset bridge address (0x2000...abcd). This Transfer event signals Hyperliquid's backend to credit the tokens on HyperCore.
    • Performs an L1WritePrecompile transaction (to 0x33...33) instructing HyperCore to execute a spot transfer of the corresponding HIP-1 tokens from the Composer's implied Core address (derived from its EVM address) to the actual receiver's address (from composeMsg) on HyperCore.

That particular Transfer event is what Hyperliquid nodes/relayers listen to in order to credit the receiver address on Core.

struct SendParam {
    uint32 dstEid;
    bytes32 to; // OFT address (so that the OFT can execute the `compose` call)
    uint256 amountLD;
    uint256 minAmountLD;
    bytes extraOptions;
    bytes composeMsg; // token receiver address (msg.sender if you want your address to receive the token)
    bytes oftCmd;
}
Token Decimals

HyperCore::HIP1 decimals can differ from HyperEVM::ERC20 decimals. The Composer handles scaling. Amounts on HyperCore will reflect HIP-1 decimals. Converting back restores ERC20 decimals.

Composer Contract:

The composer is a separate contract deployed on HyperEVM because we don't want developers to change their OFT contracts.

contract HyperLiquidComposer is IHyperLiquidComposer {
   constructor(
        address _endpoint,
        address _oft,
        uint64 _coreIndexId, // Core Spot token's index ID
        uint64 _weiDiff     // Decimal difference: HIP1.decimals - ERC20.decimals
    ) {...}

    function lzCompose(address _oApp, bytes32 _guid, bytes calldata _message, address _executor, bytes calldata _extraData) external payable override {
        // ... logic to transfer to asset bridge and L1WritePrecompile ...
    }
}

12. LayerZero Transaction on HyperEVM​

Since this is a compose call, the toAddress is the HyperLiquidComposer contract address. The token receiver is encoded as an abi.encode/Packed() of the receiver address into SendParam.composeMsg. This is later used in the lzCompose phase to transfer the tokens to the L1 spot address on behalf of the token receiver address.

_credit(toAddress, _toLD(_message.amountSD()), _origin.srcEid)

This mints the amount in local decimals to the token receiver (HyperLiquidComposer contract address).

We now need to create a Transfer event to send the tokens from HyperEVM to HyperCore, the composer computes the amount receivable on HyerCore based on the number of tokens in HyperCore's asset bridge, the max transferable tokens (u64.max * scale) and sends the tokens to itself on HyperCore (this scales the tokens based on HyperAsset.decimalDiff). It also sends to the receivers address on HyperEVM any leftover tokens from the above transformation from HyperEVM amount to HyperCore.

IHyperAssetAmount amounts = quoteHyperCoreAmount(_amount, isOft);
oft::transfer(0x2000...abcd, amounts.evm); // <- gets the user amounts.core on HyperCore
oft::transfer(_receiver_, amounts.dust);

As a result the invariant of amounts.dust + amounts.evm = _amount and amounts.evm = 10.pow(decimalDiff) * amounts.core are always satisfied.

Composer's Internal Logic (_sendAssetToHyperCore):

  1. Calculates amounts.evm (amount to send to EVM asset bridge) and amounts.core (equivalent amount on HyperCore), considering bridge capacity and decimal scaling.
  2. Calculates amounts.dust (any leftover EVM amount that cannot be bridged).
  3. token.safeTransfer(oftAsset.assetBridgeAddress, amounts.evm); → This moves tokens to HyperCore side.
  4. IHyperLiquidWritePrecompile(HLP_PRECOMPILE_WRITE).sendSpot(_receiver, oftAsset.coreIndexId, amounts.core); → This moves tokens on HyperCore from composer to receiver.
  5. token.safeTransfer(_receiver, amounts.dust); → Refunds dust to receiver on HyperEVM.
function _sendAssetToHyperCore(address _receiver, uint256 _amountLD) internal virtual {
    IHyperAssetAmount memory amounts = quoteHyperCoreAmount(_amountLD, true);

    if (amounts.evm > 0) {
        token.safeTransfer(oftAsset.assetBridgeAddress, amounts.evm);
       IHyperLiquidWritePrecompile(HLP_PRECOMPILE_WRITE).sendSpot(_receiver, oftAsset.coreIndexId, amounts.core);
    }
    if (amounts.dust > 0) {
        token.safeTransfer(_receiver, amounts.dust);
    }
}

10. OFTWrapper for Hyperliquid Bridge​

Using Hyperliquid Bridge will incur a fee (currently 0bp) that may be enabled once write precompiles are enabled. We use Stargate's OFT Wrapper on ALL networks that we support on Hyperliquid Bridge.

The repository that we use to deploy the bridge on various networks: LayerZero-Labs/hyperliquid-oft-wrapper
